Linear Guide Rail TKVD
Specifications:
Model: Size 15 to 65, standard and lengthened type
Material: Bearing steel
Accuracy Level: N,H
Length of rail : 100mm-4000mm
Linear Guide Rail TKVD
The guideways are ground from hardened steel and the raceways are superfinishing ground.

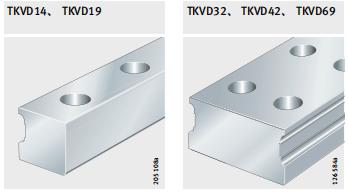

Type: TKVD14, TKVD19, TKVD32, TKVD42, TKVD69
Characteristic： Mainly used in situations where extremely high loads are required, but high rigidity and precision can still be ensured. Suitable for the machine tool industry with large strokes, it is sturdy, durable, and has a long operating life.
Main purpose：
- Five extraction and processing centers
- High-precision machining center
- Gantry machining center
- Shaped bed
- High-precision vertical grinding machine
Unique advantages:
- Optimize the shape of the roller, with longer effective bearing length, high bearing capacity, high stiffness, and small stiffness variation.
- The rolling element adopts an X-shaped layout, which is more suitable for machine tool applications. Damping slider RUDS improves the damping performance of machine tools.
- The clamping slider RUKS improves the axial rigidity of the machine tool.
- Brake slider BKE is used for emergency braking and to prevent vertical falling.
Installation method: upper installation
Applications
Widely used in vertical machining centers, drilling and tapping machines, glass machines, medical equipment, automobile production lines, tire production lines, bottle-blowing machines, palletizing machines, woodworking machinery, etc.
