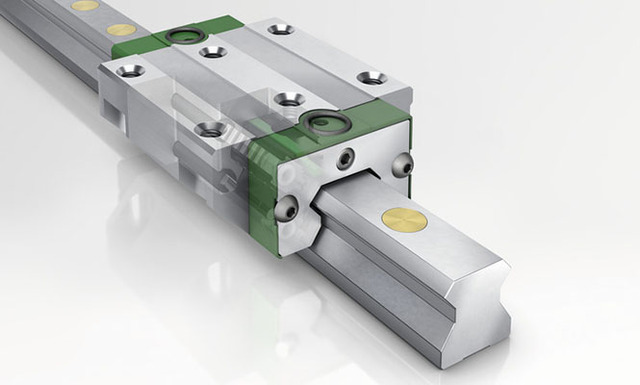

Roller Guide Rail RUE..-E
Specifications:
Model: Size 15 to 65, standard and lengthened type
Material: Bearing steel
Accuracy Level: N,H
Length of rail : 100mm-4000mm
Roller Guide Rail RUE..-E
Characteristic: Mainly used in situations where extremely high loads are required, but high rigidity and precision can still be ensured. Suitable for the machine tool industry with large strokes, it is sturdy, durable, and has a long operating life.
Features: It is mainly used in occasions that need to bear extremely high loads, but still ensure high rigidity and high precision. The Roller Guide Rail RUE consists of at least one Roller Runner Block, a guide rail, and a plastic filler piece. Due to the largest possible number of rollers, the full complement linear roller guideway has an extremely high load capacity and rigidity.
Lubrication: The roller guide rail RUE can be lubricated with oil or grease. The lubricating joint can be installed on the side and end face of the end cover. Before installation, grub screws must be removed.
Sealing: The slider is completely closed from all directions by sealing lips, gap seals, upper sealing strips, and lower double sealing strips. These sealing units can protect the rolling elements from contamination under harsh environmental conditions. The double lip seals at both ends will lubricate the Remains within the slider.
Anti-corrosion design:
Roller guide rails RUE can also be coated for corrosion protection:
Special coating Corrotect, ProtectA.
Preload level: V1-V5, V3 is the standard preload level.
Accuracy class: G0 to G3, standard accuracy class is G2
Applications: five-axis machining centers, high-precision machining centers, gantry machining centers, heavy-duty lathes, high-precision vertical grinders, injection molding machines, etc.
Main purpose:
- Five extraction and processing centers
- High-precision machining center
- Gantry machining center
- Shaped bed
- High-precision vertical grinding machine
Unique advantages:
- Optimize the shape of the roller, with longer effective bearing length, high bearing capacity, high stiffness, and small stiffness variation.
- The rolling element adopts an X-shaped layout, which is more suitable for machine tool applications. Damping slider RUDS improves the damping performance of machine tools.
- The clamping slider RUKS improves the axial rigidity of the machine tool.
- Brake slider BKE is used for emergency braking and to prevent vertical falling.
Applications
Widely used in vertical machining centers, drilling and tapping machines, glass machines, medical equipment, automobile production lines, tire production lines, bottle-blowing machines, palletizing machines, woodworking machinery, etc.
