Linear Guide Rail TSX
Specifications:
Model: Size 15 to 65, standard and lengthened type
Material: Bearing steel
Accuracy Level: N,H
Length of rail : 100mm-4000mm
Linear Guide Rail TSX
The guide rails are ground from hardened steel, and the raceways are super-finish ground.
Type: 25, 35, 45, 55, 65, 100
Installation method:

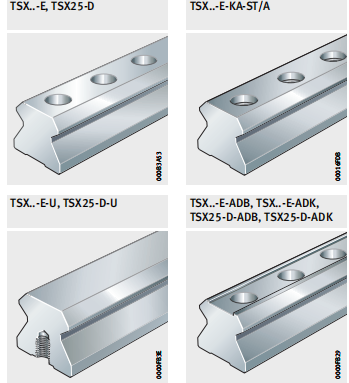

The guide rail TSX..-E (-ADB, -ADK) is fixed from above, the guide rail TSX.-E-U from below. All through holes have countersunk for bolting or blind threaded holes.
Characteristic: Mainly used in situations where extremely high loads are required, but high rigidity and precision can still be ensured. Suitable for the machine tool industry with large strokes, it is sturdy, durable, and has a long operating life.
Main purpose:
- Five extraction and processing centers
- High-precision machining center
- Gantry machining center
- Shaped bed
- High-precision vertical grinding machine
Unique advantages:
- Optimize the shape of the roller, with longer effective bearing length, high bearing capacity, high stiffness, and small stiffness variation.
- The rolling element adopts an X-shaped layout, which is more suitable for machine tool applications. Damping slider RUDS improves the damping performance of machine tools.
- The clamping slider RUKS improves the axial rigidity of the machine tool.
- Brake slider BKE is used for emergency braking and to prevent vertical falling.
Cover strip slot:
The guide rail TSX..-E-ADB has a groove for the glued-on covering strip (ADB), the guide rail TSX..-ADK has a dovetail-shaped slot on the upper surface for the recessed covering strip (ADK) .
Applications
Widely used in vertical machining centers, drilling and tapping machines, glass machines, medical equipment, automobile production lines, tire production lines, bottle-blowing machines, palletizing machines, woodworking machinery, etc.
